Solenoid valves CNG cut-off valve

Solenoid valves CNG cut-off valve

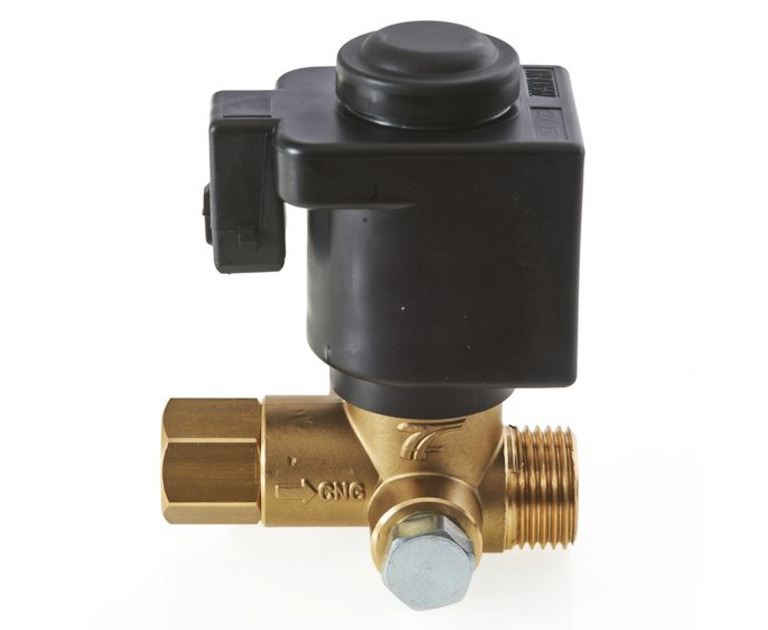

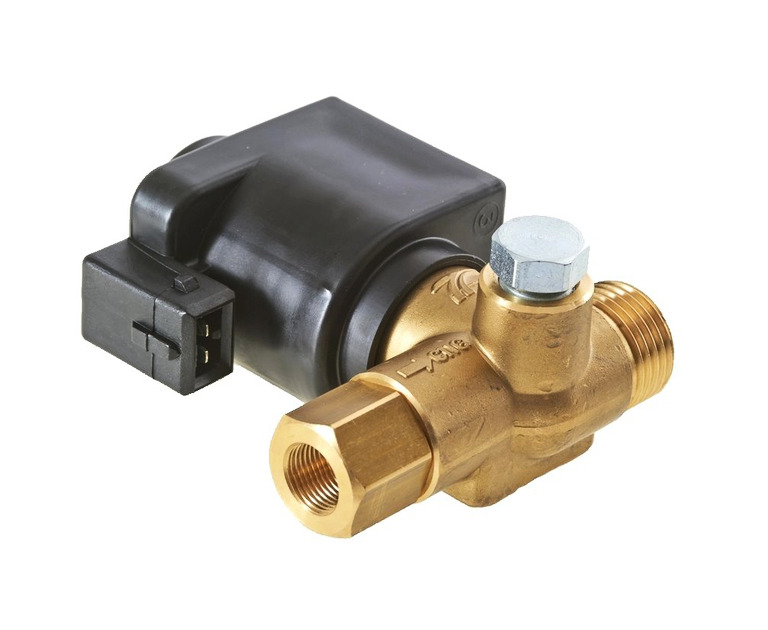

CNG high pressure cut-off valve

Description

Tomasetto CNG high pressure solenoid valve is homologated in accordance with the European Regulation ECE R110 and R10, approved in accordance with the ENARGAS NAG415 and NAG417 and comply with the ISO15500 standards.

Gallery
  • Features & Options
TECHNICAL DATA

CNG CUT-OFF VALVE STANDARD EXTRA
Material Hot forged brass Hot forged brass
Weight 0.5 kg 0.5 kg
Max inlet pressure 26 MPa 26 MPa
Working temperature -40°C/+120°C -40°C/+120°C
Solenoid voltage 12 V DC 24 V DC
Power dissipation 15 W 15 W
Coil connection Amp Minitimer Amp Minitimer
Internal connection Ø6.0 mm M12x1 Ø8.0 mm M14x1
External connection 1/2 G 1/2 G
* 24 V DC upon request
